Product Details
DRBY450

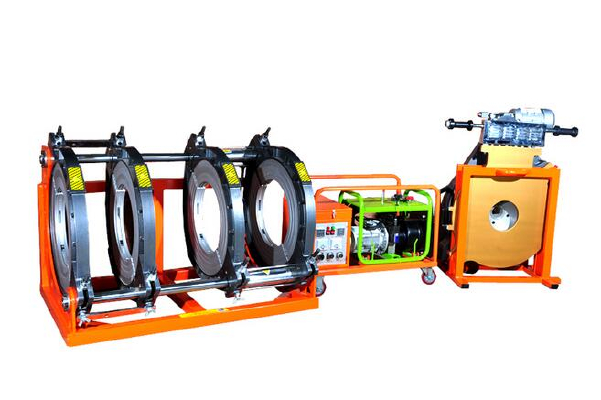

Including basic frame, milling cutters, hot plate, hydraulic station, accessory bracket and trolley.
Fusion Range
Did mm: 400 450 500 560 630
Packing (mm)
Butting Deviation
Lt;
Basic Frame host
Wooden Case Wooden Case Wooden Case Wooden Case 1170X810X840
Temperature Deviation
± 3 ° C
Hydraulic Unit
Wooden Case
Total Section of Cylinders
23.06CM²
Accessories
Accessories
Wooden Case
Heating plate maximum temperature
299 ° C
G.W. Gross Weight (Total Gross Weight)
440.0KG
Operating Pressure
0-6
Power (W) Power
Applicable Material
PEPP-RPBPVDF
Heating Plate
4.5KW / 380V
Ambient Temperature
-5 * 40 ° C
Milling Cutter
1.1KW / 380V
Required Time for Welding Temperature
The time required to reach the soldering temperature
<35 min
Hydraulic Unit
1.5KW / 380V
Parameters subject to change without notice
DRBY450
Including basic frame, milling cutters, hot plate, hydraulic station, accessory bracket and trolley.
Fusion Range
Did mm: 400 450 500 560 630
Packing (mm)
Butting Deviation
Lt;
Basic Frame host
Wooden Case
Temperature Deviation
± 3 ° C
Hydraulic Unit
Wooden Case
Total Section of Cylinders
37.20CM²
Accessories
Accessories
Wooden Case
Heating plate maximum temperature
299 ° C
G.W. Gross Weight (Total Gross Weight)
610.0KG
Operating Pressure
0-6
Power (W) Power
Applicable Material
PEPP-RPBPVDF
Heating Plate
7.5KW / 380V
Ambient Temperature
-5 * 40 ° C
Milling Cutter
1.5KW / 380V
Required Time for Welding Temperature
The time required to reach the soldering temperature
<35 min
Hydraulic Unit
1.5KW / 380V
