- Place of Origin: hangzhou
- Brand Name: DERUIBAO
- Model Number: DRB160D2

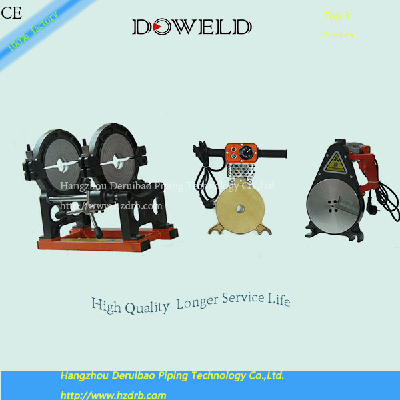

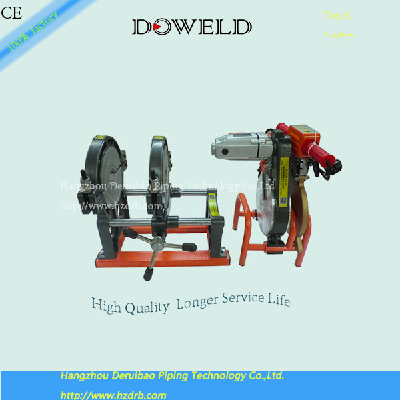

Plastic pipe butt fusion welding machine DRB160Y4
Plastic pipes butt fusion machine
u Welding ranges: plastic pipes: 63-160mm
(63mm—75mm—90mm—110mm-125mm-140mm-160mm)
u Ranges of application: PE,PP and PVDF
u Working voltage: ~220V ,50Hz
Total power: 2.28 kW, including: planing tool:0.68kW, heating plate:1.6kW
u PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±5°.
u Environment temperature: -10° ~ 45° ;
u Electronic count-down timer for heating and cooling time ;
u Whole machine consists of basic frame, heating plate, planing tool, hydraulic unit and support (for planing tool & heating plate)
- Place of Origin: hangzhou
- Brand Name: DERUIBAO
- Model Number: DRB160D2
Item | Description | Unit | Qty | Remark | |
1 | Basic frame | set | 1 | ||
2 | Inserts | set | 1 | ||
3 | Support | set | 1 | ||
4 | Planing tool | set | 1 | ||
5 | Heating plate | set | 1 | Include connection cable of heating plate | |
Attachment with machine | Planing tool | set | 1 | ||
1 | Heating plate | set | 1 | Include connection cable of heating plate | |
2 | |||||
3 | Tool box | Pcs | 1 | ||
4 | Special bolt for clamp | Set | 1 | T12*3 | |
5 | Double open wrench | Pcs | 1 | 22-24 | |
6 | Screwdriver | Pcs | 1 | ||
7 | Blade of planing tool | Pcs | 2 | ||
Spare parts | Operation instruction | Pcs | 1 | ||
1 | Conformity certificate | Pcs | 1 | ||
2 | |||||
3 | Temperature sensor | Set | 1 | PT100 | |
Special screw bolt | Set | 2 | |||
Heating switch | Set | 1 |
